01Multi-Tasking in One Pass
Tilling & planking in one go.
02Fuel-efficient farming
Field-tested to reduce diesel use dramatically.
03Soil health-first technology.
Improves excavating weeds with roots and water charging.
04Crafted for Indian conditions.
Designed, tested & patented entirely in India.
Cultivation in Dry & Hard Soil
Tilth Cultivation
How it Cultivates
Engineered for Real Farms. Proven on Indian Soil.

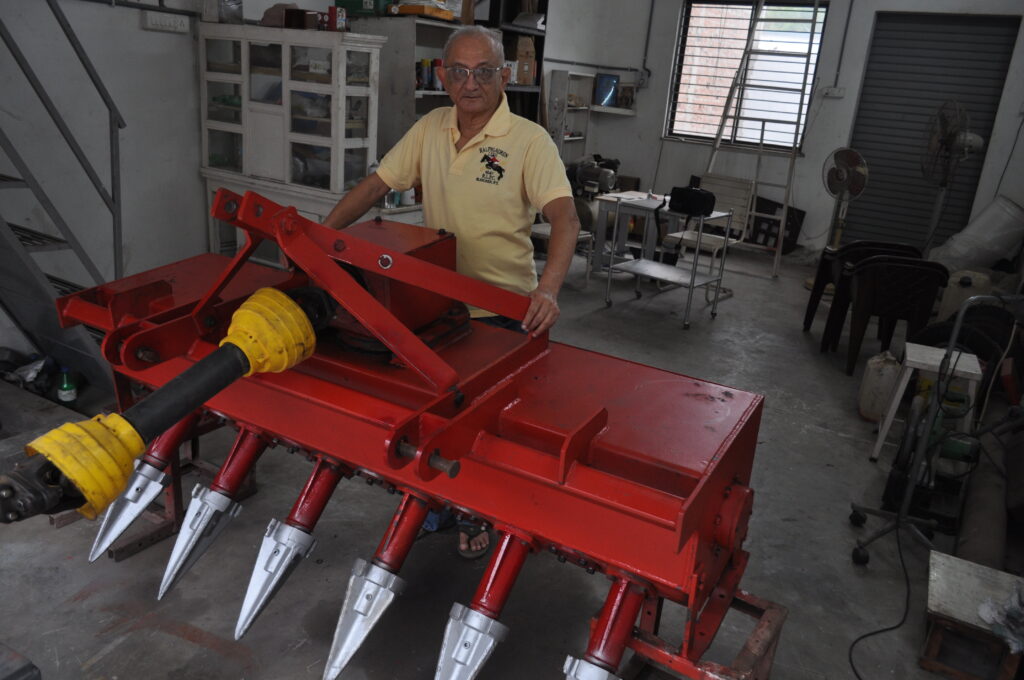

The MDCR (Multi-Depth CultiRotavator) isn’t just another farm machine—it’s a farmer-first solution designed on the field, not in labs. From breaking hardpan soil to enabling deep-rooted root growth in a single pass, this powerful tillage tool revolutionizes traditional soil preparation with precision and efficiency.
Built using real-life challenges observed by progressive farmers, including Dr. Geetaben, this machine delivers up to 66% diesel savings and 3X higher efficiency for Indian farmers. It’s rugged, low-maintenance, and optimized for both small and large-scale farming.
Key Features
- Multi-Depth Tilling: Unique blade configuration enables soil churning at variable depths in a single pass.
- Fuel-Efficient Design: Smart rotation mechanism significantly reduces diesel usage.
- Heavy-Duty Build: Crafted with corrosion-resistant materials and wear-proof components for long-term use.

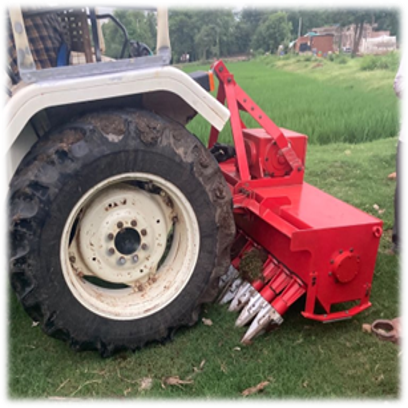

- Universal Compatibility: Easily mounts on most tractors 40 to 50 HP, with standard 3-point linkage and PTO Shaft Connection.
- Field-Tested Results: Proven across hundreds of farms in Gujarat, Maharashtra, and MP.
- Each drill rotates in contralateral direction than the adjoining companion drill.
- It CultoRotavates the soil, at least three times more than the prevalent method of 2+1 Cultivation and Rotavation over a given period of time.
- Because of all these advantages there is 66% reduction in Pollution.
- There is no dust cloud during CultiRotavation, taking care of Farmer’s Lungs.
| Feature | Details |
|---|---|
| Working Width | 6 Feet |
| Compatible Horsepower | 40 – 65 HP Tractors |
| Blade Types | Specially casted drill bits with heavy metal coating on edges. |
| Weight | Approx. 750 – 850 kg |
| Transmission | Gear-driven |
| Tillage Depth | Up to 8-9 inches |
| Maintenance | Minimal, because no lubrication is needed for 2 to 3 years. |
One Machine. Multiple Tasks. Single Pass Efficiency.
The MDCR (Multi-Depth Cultivator Rotavator) is a revolutionary piece of agricultural machinery designed to streamline soil preparation by performing multiple critical tasks in a single pass. This multi-functional approach not only saves valuable time and fuel but also enhances overall efficiency in the field.
At the start of operation, its sharp, staggered blades penetrate deep into the soil—up to 10 inches—effectively breaking hardpan layers. This allows better water absorption and promotes deeper root growth, essential for healthy crop development. As the machine moves forward, the rotavator blades actively churn the soil, simultaneously mixing crop stubble, organic matter, and fertilizers into the earth. This process enhances soil aeration and nutrient distribution, significantly improving soil fertility. Finally, a rear roller levels and smooths the freshly tilled land, creating a clean and uniform seedbed that’s ready for immediate sowing.
By combining cultivation, mixing, and leveling into one efficient cycle, the MDCR reduces labor, conserves diesel, and prepares healthier fields faster than the traditional methods.
“Since switching to the MDCR, I’ve saved on fuel and doubled my output in half the time. It’s the smartest investment I’ve made for my land.”
-Prakashbhai Patel, Maghrol, Kheda, Gujarat.
Before & After
We’ve seen firsthand how barren or compacted soil turns into rich, aerated farmland post-tillage. Results include:
Up to 30% increase in yield due to better root penetration.
Reduced weed growth and pest issues.
Faster turnaround between harvest and replanting.
